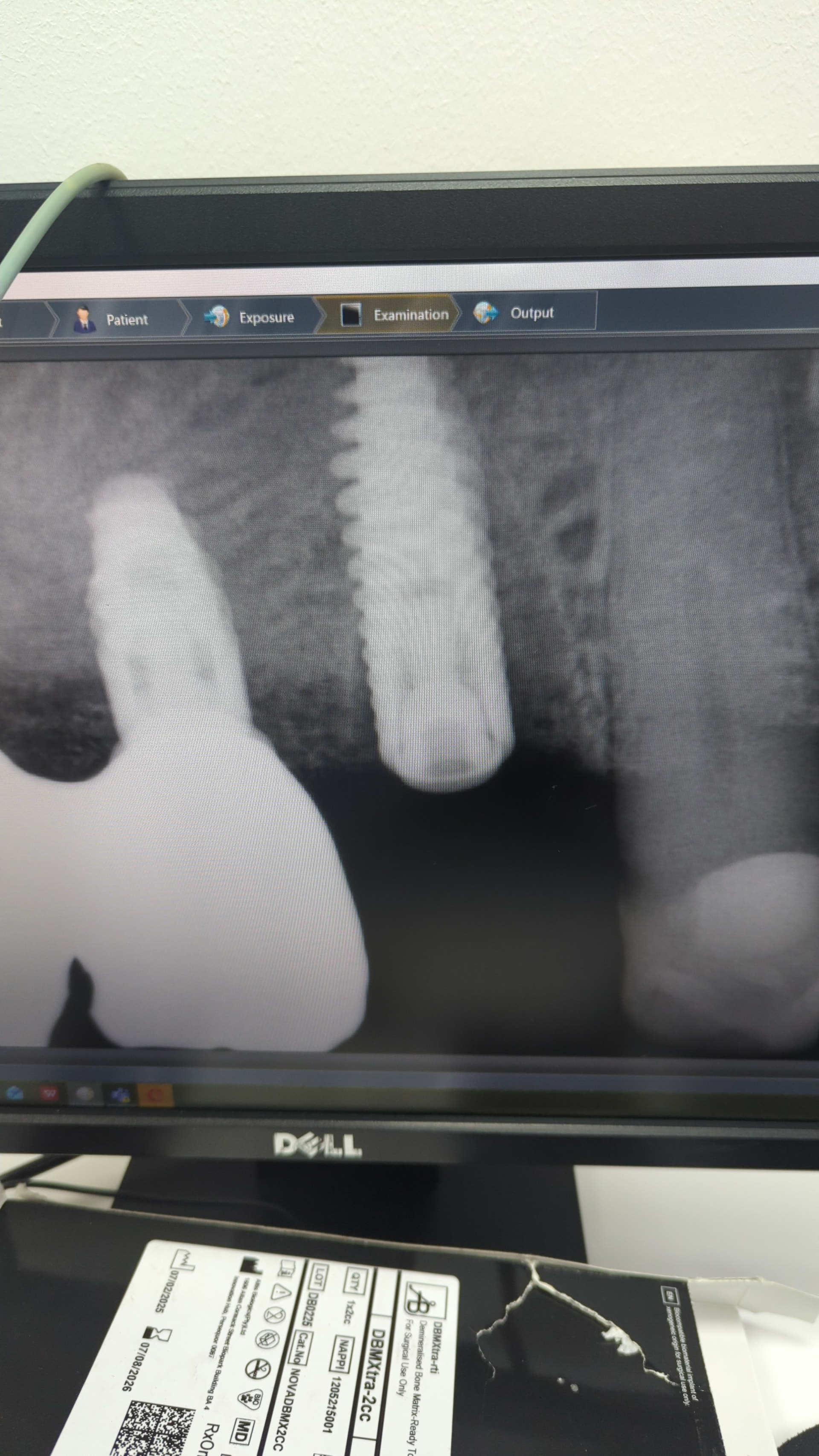

Did I place this implant too shallow?
Sorry- I cut the apex but it’s not really relevant to the q. Want to know about the placement depth.
I grafted the jump gap with a xeno mix.
Yes it is too shallow but with thick surrounding soft tissue you can probably get away with it. 20 years ago we were taught to place our Flat-Flat internal hex connections right at the crest because were were expecting circumferential bone loss down to the level of the first thread. You will likely end up with a toadstool looking crown because it lacks running room for proper emergence but its only wrong because of the style of implant you placed (small diameter conical connection) and the decade in which you placed it… Why the need to inform us that you placed xenograft material in the jumping space? It would appear that you are under the false impression that grafting around an implant is the critical skill when in fact it is an un necessary user preference that can not and will not mask improper placement… The implant will be fine it will just have a short squatty crown and if you decide to continue placing your implants flush with the crest you should consider moving away from the small diameter medialized conical connection and consider a more traditional non-platform switched connection because it will allow for a larger diameter abutment-implant interface which should help with the short vertical emergence distance.
what size is the implant? if its a premolar position, atleast mesial/distally you have enough bone for a 4.3mm diameter implant. im not sure if you have enough bone width buccal/palatally. vertically definitely placed 1-2mm too high. for immediates i usually like to place 1-2mm below the buccal crest. Is there not enough bone apically? doesn’t look like the sinus is that close. your PA also doesn’t show the apex of the implant. if implant is freshly placed, you could have pt return and you can drill deeper and reposition the implant. since you buried the implant. implant body should still be clean (ie devoid of biofilm)
depending on your surgical kit. if your using drills w/ stops (eg, hiossen or dentis) if you are planning to place a 10mm implant. i recommend you use the next longer drill like 11.5 or 12mm stop drills. that way your osteotomy will have enough apical room for the implants to be placed deeper. good luck
